Basics of Magnetic Fields
1. Permanent magnets
Learning Outcomes
- I can describe the properties of permanent magnets.
- I can identify magnetic poles and their interactions.
- I can explain why like poles repel and unlike poles attract.
- I can distinguish between magnetic and non-magnetic materials.
- I can describe magnetic domains in ferromagnetic materials.
- Magnetic storage devices
- Earth’s magnetic field

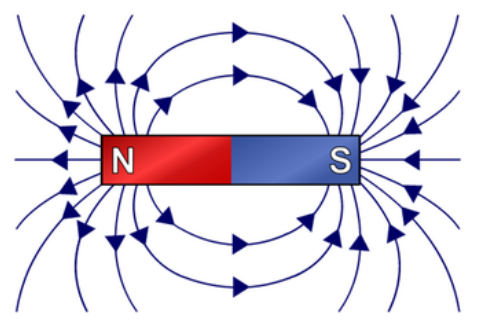

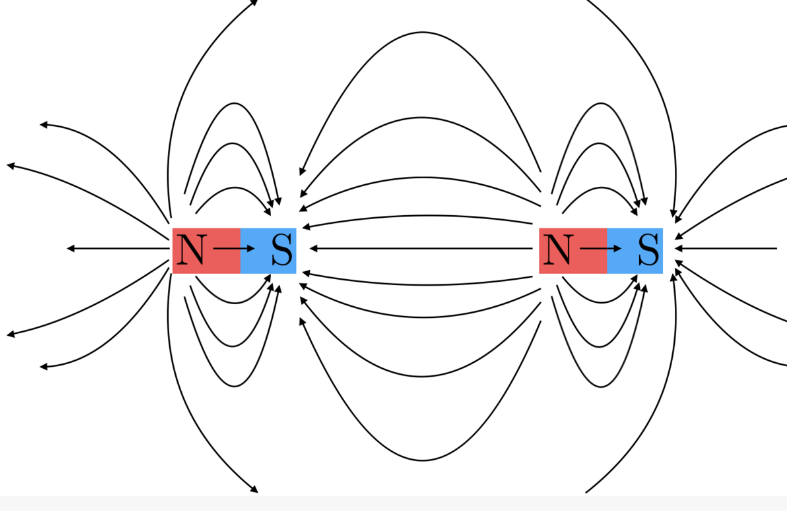

Magnetic Field Lines
To draw magnetic field lines, one must follow a few key principles:
-
Magnetic field lines always form closed loops, flowing from the north pole to the south pole outside the magnet and from the south pole to the north pole inside the magnet. This continuous flow of magnetic flux creates the characteristic looped patterns of magnetic field lines.
-
Magnetic field lines never intersect, ensuring that each line maintains its unique path and direction without crossing paths with other lines. This non-intersecting nature of magnetic field lines reflects the orderly structure of magnetic fields.
-
The density of magnetic field lines indicates the strength of the magnetic field, with closely spaced lines representing stronger fields and widely spaced lines indicating weaker fields. This visual cue helps in understanding the intensity of magnetic influence in different regions.
