Field Superposition

A gravitational field can be produced by a single mass, but real systems usually contain many masses. Earth and the Moon both create gravitational fields. The Sun, Earth, Moon, planets, satellites, and every other mass contribute to the gravitational field around them.

The principle of superposition allows us to determine the combined gravitational field produced by multiple masses.

The central idea is:

The net gravitational field at a point is the vector sum of the gravitational fields produced by all individual masses.

For two masses:

g_net = g₁ + g₂

For several masses:

g_net = g₁ + g₂ + g₃ + ...

Because gravitational field strength is a vector, both magnitude and direction must be considered.

---

What Is Superposition?

Suppose two masses, A and B, are located near a point P.

Mass A creates a gravitational field at P:

gA

Mass B also creates a gravitational field at P:

gB

Neither field disappears because the other mass is present.

Instead, both fields exist simultaneously.

The total field is found by combining them:

g_net = gA + gB

This is called superposition.

The same principle works for three, four, or any number of masses.

---

Each Mass Produces Its Own Field

The gravitational field produced by a spherical mass is:

g = GM/r²

where:

• g = gravitational field strength in N/kg
• G = gravitational constant
• M = mass producing the field
• r = distance from the centre of that mass

When several masses are present, calculate the field produced by each mass separately.

Then combine the resulting vectors.

This is usually easier than trying to think about the entire system at once.

---

Direction Matters

Gravitational fields always point toward the mass producing them.

Imagine a point P between two masses:

Mass A ← P → Mass B

At P:

• Mass A produces a field toward A
• Mass B produces a field toward B

The fields therefore point in opposite directions.

In this situation, their magnitudes are subtracted.

If:

gA = 8 N/kg left

and:

gB = 3 N/kg right

then:

g_net = 5 N/kg left

The stronger field determines the direction of the net field.

---

Fields in the Same Direction

Now imagine point P lies to the left of both masses:

P Mass A Mass B

Both masses attract a test mass toward the right.

Suppose:

gA = 6 N/kg right

and:

gB = 2 N/kg right

Then:

g_net = 6 + 2

g_net = 8 N/kg right

When gravitational field vectors point in the same direction, their magnitudes add.

---

A Simple Rule

For fields along one straight line:

Same direction → add

Opposite directions → subtract

But always determine the direction of each field before doing the arithmetic.

Do not automatically add or subtract simply because there are two masses.

---

Worked Example: Opposing Fields

At a point between two planets:

Planet A produces:

gA = 12 N/kg left

Planet B produces:

gB = 7 N/kg right

Choose right as positive.

Then:

gA = −12 N/kg

gB = +7 N/kg

Therefore:

g_net = −12 + 7

= −5 N/kg

The negative sign indicates left.

So:

g_net = 5 N/kg toward Planet A

---

Worked Example: Fields in the Same Direction

A spacecraft is located to the right of two moons.

Moon A produces a field of:

2.5 N/kg left

Moon B produces:

1.2 N/kg left

Both fields point left.

Therefore:

g_net = 2.5 + 1.2

= 3.7 N/kg left

---

Why Gravitational Fields Combine

Imagine placing a small test mass at a point influenced by several objects.

Each surrounding mass attracts the test mass.

The test mass therefore experiences several gravitational forces simultaneously.

Because:

g = F/m

and forces combine vectorially, gravitational fields must also combine vectorially.

Superposition is therefore closely related to the idea of resultant force.

---

Superposition and Resultant Force

Suppose a 2 kg object is placed where:

g_net = 4 N/kg right

Its gravitational force is:

F = mg

F = 2 × 4

= 8 N right

The net gravitational field determines the net gravitational force acting on a mass placed at that location.

---

Equal Masses

Consider two identical spherical masses:

M₁ = M₂

At their exact midpoint, the distance to each mass is also equal.

Since:

g = GM/r²

both masses produce gravitational fields of equal magnitude.

However, their directions are opposite.

Therefore:

g₁ = −g₂

and:

g_net = 0

The midpoint is therefore a gravitational neutral point.

---

What Is a Neutral Point?

A neutral point is a location where the net gravitational field is zero.

At this point:

g_net = 0

This does not mean that no gravitational fields exist there.

Instead:

• one mass produces a field
• another mass produces an opposing field
• the fields have equal magnitude
• the vectors cancel

This distinction is very important.

---

Zero Net Field Does Not Mean Zero Gravity Sources

Suppose:

gA = 5 N/kg left

and:

gB = 5 N/kg right

Then:

g_net = −5 + 5

= 0 N/kg

Both gravitational fields still exist.

Their effects simply cancel at that particular point.

Moving even a small distance away from the balance point generally produces a non-zero net field.

---

Unequal Masses

Now suppose:

M₁ > M₂

At the midpoint between them, the larger mass produces the stronger gravitational field because the distances are equal.

Therefore, the neutral point cannot be at the midpoint.

To balance the fields, we must move closer to the smaller mass.

Why?

Because:

g = GM/r²

Moving closer to the smaller mass increases its gravitational field strength.

Moving farther from the larger mass decreases the larger mass's field strength.

Eventually, the two fields may become equal.

Therefore:

For two unequal isolated masses, the neutral point between them lies closer to the smaller mass.

---

Finding a Neutral Point

At a neutral point between two masses:

g₁ = g₂

Using:

g = GM/r²

we can write:

GM₁/r₁² = GM₂/r₂²

G appears on both sides, so it cancels:

M₁/r₁² = M₂/r₂²

This equation can be used to determine the position of the neutral point.

---

Worked Example: Equal Masses

Two identical masses are separated by:

100 m

Because the masses are equal, the neutral point is halfway between them.

Therefore:

r₁ = 50 m

r₂ = 50 m

The fields are equal in magnitude and opposite in direction.

So:

g_net = 0

---

Worked Example: Unequal Masses

Mass A is:

4M

Mass B is:

M

They are separated by:

30 m

Let x be the distance from the smaller mass B to the neutral point.

Then the distance from the larger mass A is:

30 − x

At the neutral point:

4M/(30 − x)² = M/x²

Cancel M:

4/(30 − x)² = 1/x²

Take the positive square root:

2/(30 − x) = 1/x

Cross multiply:

2x = 30 − x

3x = 30

x = 10 m

Therefore, the neutral point is:

10 m from the smaller mass

and:

20 m from the larger mass

As expected, it is closer to the smaller mass.

---

A Useful Shortcut for Balance Problems

Starting from:

M₁/r₁² = M₂/r₂²

we can rearrange:

r₁/r₂ = √(M₁/M₂)

This tells us how the distances from the balance point compare.

For example, if:

M₁ = 9M₂

then:

r₁/r₂ = √9

= 3

The neutral point must be three times farther from the larger mass than from the smaller mass.

---

Example Using the Distance Ratio

Two masses are:

9M and M

and are separated by:

40 m

At the neutral point:

r_large/r_small = √(9M/M)

= 3

So:

r_large = 3r_small

The total distance is:

r_large + r_small = 40

3r_small + r_small = 40

4r_small = 40

r_small = 10 m

Therefore:

r_large = 30 m

The neutral point is 10 m from the smaller mass.

---

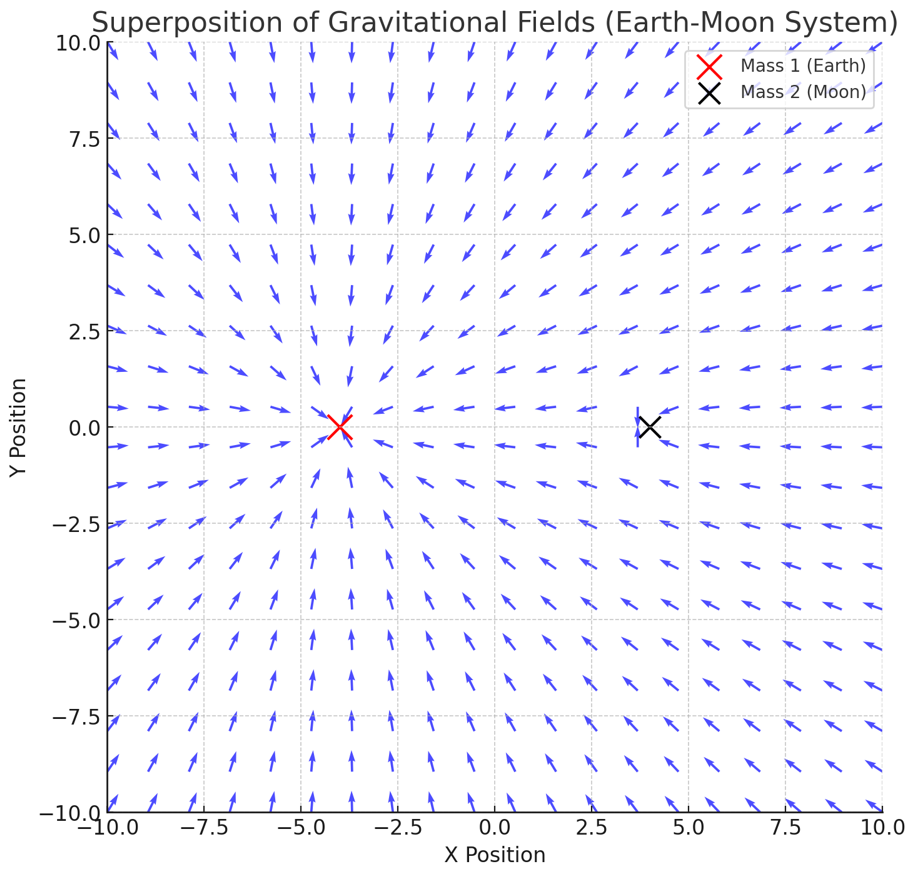

Field Diagrams for Two Masses

Field-line diagrams become more complex when more than one mass is present.

Every gravitational field line ultimately points toward a mass.

Around two masses:

• field lines curve because both masses influence the field
• the pattern depends on the masses
• more field lines may be associated with the larger mass in a qualitative diagram
• there may be a neutral point between the masses

A field diagram represents the net gravitational field, not two completely independent diagrams drawn on top of each other.

---

Field Direction Between Two Masses

Consider:

A -------- P -------- B

At P:

Field due to A points:

toward A

Field due to B points:

toward B

Therefore, the fields oppose one another.

The net field points toward whichever mass produces the stronger field at P.

Remember that field strength depends on both:

mass

and:

distance

A smaller but much closer mass can produce a stronger field than a larger, more distant mass.

---

Example: Mass Versus Distance

Suppose at point P:

Mass A:

M = 8 × 10¹⁰ kg

Distance to P:

r = 4 m

Mass B:

M = 2 × 10¹⁰ kg

Distance to P:

r = 2 m

Ignoring the common factor G:

For A:

M/r² = 8 × 10¹⁰ / 16

= 0.5 × 10¹⁰

For B:

M/r² = 2 × 10¹⁰ / 4

= 0.5 × 10¹⁰

Therefore:

gA = gB

If P lies between the masses, the fields point in opposite directions.

So:

g_net = 0

The masses do not have to be equal for their fields to balance.

---

Points Outside Two Masses

Consider:

P ---- A -------- B

Point P is outside the two masses.

Both A and B attract a test mass at P toward the right.

Therefore, their fields point in the same direction.

So:

g_net = gA + gB

This is why it is essential to sketch the system before calculating.

Between two masses, fields usually oppose.

Outside the pair, they usually point in the same direction.

---

A Four-Step Method for One-Dimensional Superposition

For masses arranged along a straight line:

Identify the Point

Mark the location where you want to calculate the field.

Determine Each Direction

For every source mass, draw an arrow from the point toward that mass.

Calculate Each Field

Use:

g = GM/r²

for each mass.

Combine the Fields

Choose one direction as positive.

Then add the signed values.

The sign of the final answer determines the direction.

---

Worked Example with Two Masses

Mass A:

6.0 × 10¹¹ kg

is 4.0 m to the left of point P.

Mass B:

3.0 × 10¹¹ kg

is 2.0 m to the right of P.

Use:

G = 6.67 × 10⁻¹¹ N·m²/kg²

Field Due to A

gA = GM/r²

= (6.67 × 10⁻¹¹)(6.0 × 10¹¹)/(4.0)²

= 40.02/16

≈ 2.50 N/kg left

Field Due to B

gB = (6.67 × 10⁻¹¹)(3.0 × 10¹¹)/(2.0)²

= 20.01/4

≈ 5.00 N/kg right

Therefore:

g_net = 5.00 − 2.50

= 2.50 N/kg right

Although Mass A is larger, Mass B produces the stronger field because it is much closer.

---

Three Masses in a Line

Superposition works exactly the same way with more than two masses.

Suppose three masses produce fields at point P:

g₁ = 6 N/kg right

g₂ = 4 N/kg left

g₃ = 3 N/kg right

Choose right as positive:

g_net = +6 − 4 + 3

= 5 N/kg right

Each contribution is calculated independently before being combined.

---

Fields at Right Angles

Gravitational fields do not always lie along one straight line.

Suppose:

g₁ = 3 N/kg east

and:

g₂ = 4 N/kg north

These fields are perpendicular.

They cannot simply be added as:

3 + 4 = 7.

Instead, use vector addition.

Magnitude:

g_net = √(3² + 4²)

= √25

= 5 N/kg

Direction:

tan θ = 4/3

θ ≈ 53° north of east

---

Using Components

For more complicated two-dimensional systems, resolve each gravitational field vector into components.

For a field g at angle θ:

gₓ = g cos θ

gᵧ = g sin θ

Then add all horizontal components:

g_net,x = g₁x + g₂x + g₃x + ...

and all vertical components:

g_net,y = g₁y + g₂y + g₃y + ...

Finally:

g_net = √(g_net,x² + g_net,y²)

Direction can be found using:

tan θ = g_net,y/g_net,x

with the final quadrant determined from the signs of the components.

---

Symmetry Can Simplify Problems

Symmetry often makes gravitational field problems much easier.

Suppose two identical masses are positioned the same distance to the left and right of point P.

Their fields at P have:

• equal magnitudes
• opposite directions

Therefore:

g_net = 0

No detailed numerical calculation is necessary.

Always look for symmetry before beginning lengthy calculations.

---

Three Equal Masses in a Symmetric Arrangement

Imagine three identical masses placed at the corners of an equilateral triangle.

At the exact centre:

• each mass produces a gravitational field of equal magnitude
• the three field vectors are symmetrically spaced
• their vector sum is zero

Therefore:

g_net = 0

This is another example of fields cancelling through symmetry.

The individual fields are not zero.

Their vector sum is zero.

---

Four Equal Masses

Suppose four equal masses are placed at the corners of a square.

At the exact centre:

• each mass produces the same field strength
• opposite contributions cancel

Therefore:

g_net = 0

Symmetry allows us to predict the result before calculating.

---

Breaking the Symmetry

Now imagine one of the four masses is removed.

The remaining fields no longer cancel perfectly.

There will be a net gravitational field.

Its direction can often be predicted qualitatively before calculating.

This is an important physics skill:

predict the direction first, then calculate the magnitude.

A calculated answer that points in an obviously unreasonable direction is a warning that an error has occurred.

---

Superposition in the Earth–Moon System

Both Earth and the Moon create gravitational fields.

Between them:

• Earth's field points toward Earth
• the Moon's field points toward the Moon

At some location between them, the two fields can have equal magnitude and opposite direction.

The location is closer to the Moon because the Moon is much less massive than Earth.

This provides a real astronomical example of gravitational field superposition.

The simple two-body neutral-point model should not be confused with the full rotating-system analysis used for Lagrange points, which also involves orbital motion.

---

Superposition Does Not Change the Individual Fields

Suppose Earth produces a field of:

4 N/kg

at a certain location.

Another mass is introduced and produces:

1 N/kg in the opposite direction.

Earth's contribution does not suddenly become:

3 N/kg.

Earth still contributes:

4 N/kg

The other object contributes:

1 N/kg

The net field is:

3 N/kg

Superposition combines the fields without changing the individual contributions.

---

Net Field Versus Individual Field

It is useful to distinguish:

individual field

from:

net field

An individual field is the contribution from one source mass.

The net field is the vector sum of all contributions.

For example:

gEarth = 7 N/kg downward

gMoon = 0.03 N/kg upward

Then:

g_net = 7 − 0.03

= 6.97 N/kg downward

Both individual fields still exist.

---

Field Strength and Force

Once the net gravitational field is known, the gravitational force on an object can be calculated using:

F_net = mg_net

For example:

A 20 kg object is placed where:

g_net = 3 N/kg left

Then:

F_net = 20 × 3

= 60 N left

This is often easier than separately calculating every gravitational force and then adding them.

---

Example: From Multiple Fields to Force

At a location:

Mass A produces:

4 N/kg east

Mass B produces:

1.5 N/kg west

Therefore:

g_net = 4 − 1.5

= 2.5 N/kg east

A 6 kg object placed there experiences:

F = mg

= 6 × 2.5

= 15 N east

---

Field Diagrams and Superposition

When interpreting a field diagram involving several masses, look for:

• which masses are present
• which way the field lines point
• regions where lines are densely packed
• regions where the field is weaker
• symmetry
• possible neutral points
• how the field direction changes from one region to another

The field pattern represents the combined effect of all masses.

---

A Complete Superposition Strategy

For any simple gravitational field problem:

Sketch the system.

Mark all masses and the point of interest.

Draw the individual field directions.

Every arrow points from the point of interest toward the source mass.

Calculate distances carefully.

Measure r from the centre of each source mass.

Calculate each field.

Use:

g = GM/r²

Resolve vectors if necessary.

Use components when fields are not collinear.

Add the vectors.

Find the net field.

State magnitude and direction.

A vector answer without direction is incomplete.

Check the result.

The final direction should make physical sense.

---

Common Mistakes

Adding field magnitudes without considering direction

Gravitational field strength is a vector.

Assuming the larger mass always produces the stronger field

Distance also matters because:

g ∝ M/r²

A smaller nearby mass can produce a stronger field than a larger distant mass.

Assuming the neutral point is always halfway

This is true only for two equal masses in the simple isolated two-body arrangement.

Placing the neutral point closer to the larger mass

For unequal masses, the balance point between them is closer to the smaller mass.

Thinking zero net field means no gravitational fields exist

Individual fields can be non-zero while their vector sum is zero.

Adding perpendicular fields arithmetically

Fields at right angles require vector addition.

Forgetting that gravity points toward the source mass

Determine direction before assigning positive or negative signs.

Using altitude instead of distance from the centre

In:

g = GM/r²

r is the distance from the centre of the source mass.

Calculating force when the question asks for field strength

Field strength is measured in N/kg; force is measured in N.

---

Key Terms

Superposition — the principle that the net gravitational field is the vector sum of the fields produced by individual masses.

Gravitational field strength (g) — gravitational force per unit mass at a point.

Individual field — the gravitational field contribution produced by one source mass.

Net gravitational field — the vector sum of all gravitational field contributions at a point.

Vector — a quantity with both magnitude and direction.

Resultant — the single vector representing the combined effect of several vectors.

Source mass — a mass producing a gravitational field.

Test mass — a small mass used conceptually to determine the direction and strength of a gravitational field.

Neutral point — a point where gravitational field vectors cancel so that the net gravitational field is zero.

Balance point — another term often used for a location where opposing field contributions have equal magnitude.

Symmetry — a geometric arrangement that can cause equal field components to cancel.

Component — the part of a vector acting along a chosen direction, such as horizontal or vertical.

Collinear fields — field vectors acting along the same straight line.

Superposition of vectors — combining vectors while accounting for both their magnitudes and directions.

---

Key Takeaways

• Every mass produces its own gravitational field.
• When several masses are present, their gravitational fields exist simultaneously.
• The principle of superposition states that the net field is the vector sum of the individual fields.
• Gravitational field strength is a vector, so direction must always be considered.
• Fields pointing in the same direction add.
• Fields pointing in opposite directions subtract.
• Fields at angles must be combined using vector methods.
• Each source field can be calculated using g = GM/r².
• The net field can be zero even when several non-zero gravitational fields are present.
• For two equal masses, the neutral point between them is at the midpoint.
• For two unequal masses, the neutral point between them lies closer to the smaller mass.
• At a balance point, opposing gravitational field strengths are equal in magnitude.
• A larger mass does not necessarily produce the stronger field at a particular point because distance also affects field strength.
• Symmetry can simplify multi-mass gravitational systems dramatically.
• Once the net field is known, the gravitational force on a mass can be calculated using F = mg_net.
• A good superposition solution should always state both the magnitude and direction of the net gravitational field.

---

Check Your Understanding

1. State the principle of superposition for gravitational fields.
2. Why must gravitational field strengths be added as vectors rather than simply as numbers?
3. At a point P, one mass produces a field of 8 N/kg east and another produces 3 N/kg east. Determine the net field.
4. At a point P, one mass produces 12 N/kg west and another produces 7 N/kg east. Determine the magnitude and direction of the net field.
5. Explain why the gravitational fields produced by two masses point in opposite directions at a point located between the masses.
6. Two identical masses are separated by 80 m. Determine the location of the neutral point between them.
7. Explain why the neutral point between two unequal masses is closer to the smaller mass.
8. Two masses are 9M and M and are separated by 60 m. Determine the location of the neutral point between them.
9. At point P, two perpendicular gravitational fields have strengths 6 N/kg east and 8 N/kg north. Calculate the magnitude of the net gravitational field.
10. Three masses produce fields at P of 7 N/kg right, 4 N/kg left, and 2 N/kg right. Determine the net field.
11. Explain how four equal masses positioned at the corners of a square can produce a net gravitational field of zero at the centre.
12. At a particular point, a larger mass is farther away while a smaller mass is much closer. Explain why you cannot determine which produces the stronger gravitational field from their masses alone.
13. A 5 kg object is placed at a point where the net gravitational field is 4.2 N/kg south. Calculate the net gravitational force acting on the object.
14. Explain the difference between saying "the gravitational field is zero" and "the net gravitational field is zero because two fields cancel."
15. Two planets of unequal mass are separated in space. Describe a complete method for determining the position of the point between them where the gravitational fields balance.
