Particle Physics Beyond the Laboratory

Particle physics is often associated with giant accelerators, subatomic particles, and fundamental questions about the universe.

However, the technology developed for particle physics has many practical applications.

These include:

• medical imaging
• cancer treatment
• industrial measurement
• security screening
• materials analysis
• radiation monitoring
• scientific research
• computing and data processing

Particle physics therefore affects society in ways that go far beyond basic research.

---

Medical Applications

Some of the most important applications of particle physics are found in medicine.

Particle and radiation technologies are used to:

• diagnose disease
• produce medical images
• treat cancer
• measure biological processes
• create medical isotopes

Two especially important examples are:

PET scanning

and:

particle-beam therapy

---

Positron Emission Tomography

Positron Emission Tomography, or PET, is a medical imaging technique based directly on particle physics.

PET uses radioactive substances that emit positrons.

A positron is the antiparticle of the electron.

Symbol:

e⁺

The patient receives a small amount of a radioactive tracer.

The tracer accumulates differently in different tissues depending on biological activity.

---

How PET Works

A radioactive nucleus in the tracer undergoes beta-plus decay.

A simplified nuclear process is:

p → n + e⁺ + νₑ

The emitted positron travels a short distance through tissue.

Eventually it encounters an electron.

Then:

e⁺ + e⁻ → γ + γ

The electron and positron annihilate.

Their mass-energy becomes photon energy.

---

The 511 keV Photons

If the electron and positron are approximately at rest when they annihilate, two photons are produced.

Each has energy:

511 keV

because the rest energy of an electron or positron is:

0.511 MeV

The photons travel in nearly opposite directions.

A PET scanner uses a ring of detectors to detect pairs of photons arriving at nearly the same time.

This is called coincidence detection.

---

From Annihilation to an Image

The PET process can be summarized:

radioactive tracer administered

↓

positron emitted

↓

positron meets electron

↓

annihilation occurs

↓

two 511 keV photons emitted

↓

detectors record photon pairs

↓

computer reconstructs an image

This allows doctors to study activity inside the body rather than simply anatomical structure.

---

Why PET Is Useful

PET is particularly useful because it can show functional activity.

For example, tissues may differ in:

• glucose use
• blood flow
• oxygen use
• receptor activity
• metabolic activity

This makes PET useful in areas such as:

• cancer imaging
• brain research
• heart imaging
• treatment monitoring

PET is often combined with CT or MRI so that functional and structural information can be viewed together.

---

Antimatter in a Hospital

PET is a remarkable example of antimatter being used routinely in medicine.

The positron is a real antiparticle.

A concept that sounds highly theoretical becomes part of a practical diagnostic technology.

This creates a direct link between:

antimatter physics

and:

medical imaging

---

Radiation Therapy

Particle physics also contributes directly to cancer treatment.

Traditional radiation therapy often uses high-energy photons.

Other treatments use charged particles such as:

• electrons
• protons
• heavier ions

The goal is to deposit enough energy in a tumour to damage cancer cells while minimizing damage to healthy tissue.

---

Proton Therapy

Proton therapy uses accelerated protons to treat certain cancers.

Protons are accelerated to high energies and directed toward the tumour.

The energy deposited by protons behaves differently from that of high-energy photons.

A proton beam can be arranged to deposit much of its energy near the end of its path.

This feature is associated with the Bragg peak.

---

The Bragg Peak

As charged particles move through matter, they lose energy by interacting with atoms.

For protons, energy deposition rises strongly near the end of the particle's range.

This produces a peak called the:

Bragg peak

Doctors can adjust the proton energy so that this high-dose region occurs near the tumour.

That can reduce radiation exposure to some healthy tissue beyond the tumour compared with certain photon treatments.

---

Why Particle Beams Can Be Useful

Particle-beam therapy can be especially valuable when a tumour is:

• close to sensitive organs
• in the brain
• near the spinal cord
• in a child, where reducing unnecessary radiation exposure can be particularly important

However, particle therapy requires:

• large accelerators
• precise beam control
• expensive equipment
• highly trained staff

So it is not automatically the best treatment for every patient.

---

Accelerators in Medicine

Many medical treatments rely on accelerator technology.

Medical Linear Accelerators

These produce high-energy electron beams.

The electrons may be used directly or used to generate high-energy X-rays.

Cyclotrons

Cyclotrons can accelerate charged particles and are often used to produce medical radioisotopes.

Proton Synchrotrons and Cyclotrons

These can generate proton beams for therapy.

Technology originally developed to study particles can therefore become hospital equipment.

---

Medical Isotope Production

Particle accelerators can also produce radioactive isotopes.

One important PET isotope is:

fluorine-18

Fluorine-18 undergoes beta-plus decay and can be incorporated into biological tracers.

For example, PET studies commonly use molecules designed to trace metabolic activity.

This connects:

nuclear reactions

↓

radioisotope production

↓

particle decay

↓

detector technology

↓

medical diagnosis

---

Detectors in Medicine

Medical imaging also depends heavily on particle detector technology.

Detectors may use:

• scintillating materials
• semiconductor detectors
• photodetectors
• electronic timing systems

These technologies were developed and improved partly through nuclear and particle physics research.

---

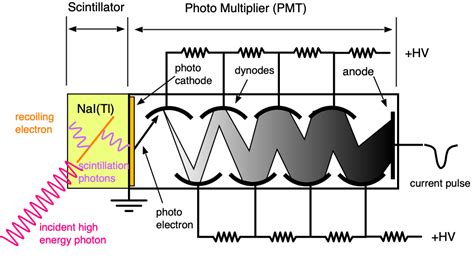

Scintillation Detectors

A scintillator produces a tiny flash of light when radiation deposits energy in the material.

That light can then be converted into an electrical signal and measured.

Scintillation detectors are used in:

• PET scanners
• radiation monitoring
• nuclear physics
• security systems
• particle experiments

---

Particle Detectors in Industry

Industry uses radiation and particle detectors to measure objects without touching or damaging them.

This is often called:

non-destructive testing

A detector measures how radiation changes after passing through or interacting with a material.

From this, engineers can determine properties such as:

• thickness
• density
• composition
• internal defects
• contamination

---

Thickness Gauges

A classic industrial example is measuring the thickness of materials such as:

• paper
• plastic film
• metal foil

A radioactive source is placed on one side of the material.

A detector is placed on the other.

If the material becomes thicker:

more radiation is absorbed

so:

less radiation reaches the detector

If the material becomes thinner:

less radiation is absorbed

so:

more radiation reaches the detector

The manufacturing system can automatically adjust the machinery to maintain a consistent thickness.

---

Industrial Process Control

Radiation detectors can also be used to measure:

• liquid levels inside sealed containers
• density of materials
• flow rates
• material composition
• coating thickness

This can be useful because the detector does not necessarily need direct contact with the material.

That is especially valuable when dealing with:

• high temperatures
• corrosive chemicals
• sealed containers
• moving production lines

---

Non-Destructive Testing

Radiation can reveal defects inside objects without cutting them open.

High-energy X-rays or gamma rays can pass through objects and produce images of internal structures.

Applications include checking:

• welds
• aircraft components
• pipelines
• cast metal parts
• structural components

Cracks or voids change the amount of radiation reaching the detector.

This technique is similar in principle to medical radiography.

---

Security Applications

Particle and radiation detection technologies are also important in security.

Detectors can identify:

• radioactive materials
• unusual radiation sources
• hidden dense objects
• some hazardous materials

Applications include:

• airports
• ports
• border crossings
• cargo inspection
• nuclear facilities

---

Radiation Portal Monitors

At some ports and border crossings, vehicles or cargo containers pass between radiation detectors.

These systems are called radiation portal monitors.

They look for unusual levels or types of radiation.

Detection systems may use:

• gamma-ray detectors
• neutron detectors
• spectrometers

---

Security Scanning

High-energy radiation can also be used to inspect cargo.

Dense objects absorb radiation differently from less dense materials.

A detector can create an image showing differences in material density and structure.

The basic principle resembles medical imaging, but the scale may be much larger.

---

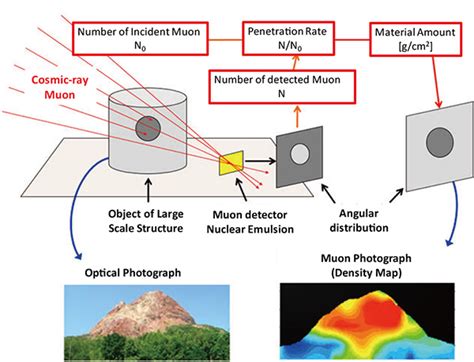

Muon Tomography

A more unusual security and imaging application uses cosmic-ray muons.

Muons are naturally produced when cosmic rays interact with Earth's atmosphere.

They can penetrate large amounts of material.

Scientists can measure how muons pass through or scatter inside an object.

This technique is called:

muon tomography

---

Muon Imaging Applications

Muon imaging has been investigated or used for:

• cargo inspection
• nuclear material detection
• volcano studies
• archaeological structures
• damaged nuclear reactors

This is a striking example of a particle discovered through fundamental research becoming useful for imaging large structures.

---

Materials Science

Particle physics techniques are also used to study the structure and composition of materials.

Scientists can direct beams of:

• electrons
• ions
• neutrons
• X-rays
• other particles

at a material and study how they interact.

The resulting signals can reveal information that may be impossible to obtain by ordinary visual inspection.

---

Ion Beam Analysis

In ion beam analysis, accelerated ions strike a sample.

Scientists measure particles or radiation produced by the interaction.

This can reveal:

• elemental composition
• layer thickness
• impurities
• surface structure
• depth profiles

The technique can sometimes detect extremely small quantities of material.

---

Focused Ion Beams

A focused ion beam, or FIB, uses a tightly controlled beam of ions.

The beam can be used to:

• image surfaces
• remove tiny amounts of material
• cut microscopic structures
• prepare samples
• modify electronic components

---

Semiconductor Manufacturing

Modern electronics depend heavily on techniques related to particle physics.

One example is ion implantation.

Accelerated ions are fired into a semiconductor.

This changes the electrical properties of specific regions.

The process is important in manufacturing:

• computer chips
• sensors
• electronic devices

Particle accelerators therefore contribute indirectly to much of modern electronics.

---

Neutron Scattering

Neutrons are useful probes of materials because they:

• have no electric charge
• can penetrate deeply into some materials
• interact with atomic nuclei
• are sensitive to magnetic structure

Neutron scattering can help scientists investigate:

• crystal structures
• magnetic materials
• polymers
• batteries
• biological molecules

---

Synchrotron Radiation

When charged particles are accelerated along curved paths, they can emit electromagnetic radiation.

Large research facilities called synchrotrons produce extremely intense radiation.

This radiation can be used to study materials at very small scales.

Applications include:

• protein structures
• pharmaceuticals
• battery materials
• catalysts
• metals
• archaeological samples
• nanotechnology

---

Particle Physics and Archaeology

Particle and accelerator techniques can even help study historical objects.

Scientists can analyze:

• pigments
• ceramics
• metals
• ancient coins
• artworks

without necessarily removing large samples.

This can reveal information about:

• composition
• manufacturing methods
• age
• origin
• restoration history

---

Particle Detectors and Environmental Monitoring

Radiation detectors are also useful for environmental science.

They can monitor:

• background radiation
• radioactive contamination
• radon
• nuclear facility emissions
• contaminated soil or water

Accurate detectors allow scientists to distinguish natural radiation from unusual sources.

---

Smoke Detectors

A familiar example of applied nuclear physics is the ionization smoke detector.

Some designs use a tiny amount of radioactive material to ionize air.

Smoke entering the detector changes the ionization current.

The device then triggers an alarm.

This is more specifically an application of nuclear radiation than high-energy particle physics, but it relies on the same understanding of particles interacting with matter.

---

Scientific Research

Particle physics technology is also used to answer scientific questions far outside particle physics itself.

Detectors and accelerators support research in:

• astronomy
• chemistry
• biology
• geology
• materials science
• environmental science
• medicine
• archaeology

---

Detector Technology

Modern particle detectors can measure properties such as:

• energy
• position
• momentum
• electric charge
• arrival time
• particle type

Different detector systems are designed for different particles.

Examples include:

• silicon detectors
• scintillators
• calorimeters
• gas detectors
• Cherenkov detectors

---

Silicon Detectors

Silicon detectors are widely used in particle physics.

When a charged particle passes through silicon, it creates a small electrical signal.

These signals can reveal where the particle travelled.

By combining many detector layers, scientists can reconstruct a particle's:

track

or:

trajectory

Technology based on semiconductor detectors also has applications in medical and industrial imaging.

---

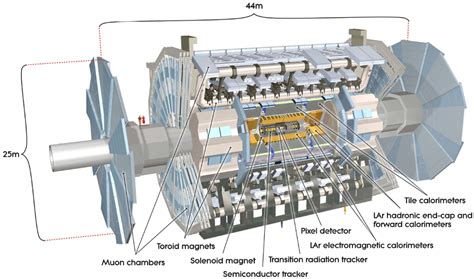

Layered Particle Detectors

Large particle experiments often surround the collision point with several different detector layers.

A simplified arrangement is:

collision point

↓

tracking detector

↓

electromagnetic calorimeter

↓

hadronic calorimeter

↓

muon detector

Different layers measure different properties of the particles.

---

Calorimeters

In particle physics, a calorimeter measures particle energy by absorbing the particle or its resulting shower of secondary particles.

Large collider experiments use calorimeters to measure:

• electrons
• photons
• hadrons

The underlying detector technologies have influenced other radiation-measurement applications.

---

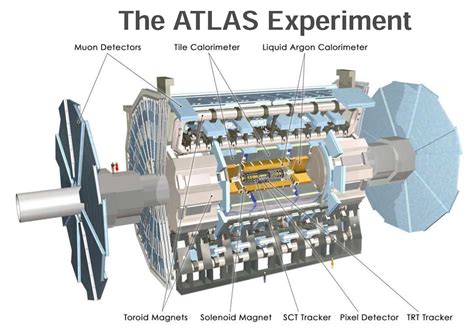

Large Collider Experiments

Particle physics research uses enormous detector systems surrounding collision points.

At facilities such as CERN, detectors collect information from huge numbers of collision events.

Scientists reconstruct particles from:

• tracks
• energy deposits
• timing
• missing momentum
• decay products

---

Scientific Discoveries

Particle accelerators and detectors have contributed to discoveries such as:

• antimatter particles
• new mesons and baryons
• quarks
• W and Z bosons
• the tau lepton
• the Higgs boson

They also allow scientists to test the Standard Model with extremely high precision.

---

Studying the Early Universe

High-energy particle collisions can produce conditions similar to those that existed very early in cosmic history.

Heavy-ion collisions can produce:

quark-gluon plasma

Studying this state helps researchers investigate how matter behaved shortly after the Big Bang.

Particle physics therefore connects directly to:

cosmology

---

Neutrino Research

Large detectors are also used to study neutrinos.

Because neutrinos interact so weakly, detectors often need to be:

• extremely large
• very sensitive
• placed underground

Neutrino experiments help scientists investigate:

• neutrino oscillation
• neutrino mass
• solar processes
• supernovae
• physics beyond the Standard Model

---

Particle Physics and Computing

Modern particle experiments generate enormous amounts of data.

Managing this data has driven advances in:

• distributed computing
• high-speed networking
• data storage
• machine learning
• image reconstruction
• statistical analysis

Large scientific collaborations often process data using networks of computers spread around the world.

---

The World Wide Web

One famous technological development associated with particle-physics research is the World Wide Web.

It was developed at CERN to make information sharing easier among researchers.

The original goal was scientific communication, but the technology later transformed global communication.

This illustrates how basic research can produce unexpected societal benefits.

---

Technology Transfer

A discovery does not need to have an obvious immediate practical purpose to become useful later.

A typical pathway is:

fundamental research

↓

new scientific problem

↓

new detector or accelerator technology

↓

engineering improvement

↓

application in another field

↓

societal benefit

This is called technology transfer.

---

Benefits to Medicine

Particle physics contributes to medicine through:

• PET imaging
• radiation therapy
• proton therapy
• medical isotope production
• detector technology
• image reconstruction
• radiation dosimetry

These applications can improve:

• diagnosis
• treatment precision
• disease monitoring
• patient outcomes

---

Benefits to Industry

Industrial benefits include:

• non-destructive testing
• thickness measurement
• quality control
• semiconductor manufacturing
• materials analysis
• process monitoring

These technologies can improve:

• safety
• efficiency
• consistency
• product quality

---

Benefits to Security

Security benefits include:

• radiation monitoring
• cargo inspection
• detection of radioactive materials
• imaging of dense objects
• nuclear safeguards

These applications help reduce risks associated with hazardous or unauthorized materials.

---

Benefits to Scientific Knowledge

Basic particle physics research also has value because it improves our understanding of nature.

Questions include:

• What is matter made from?
• Why do particles have mass?
• What is dark matter?
• Why is there more matter than antimatter?
• How did the early universe behave?

Scientific knowledge itself can be valuable even when the practical application is not immediate.

---

Evaluating Societal Benefits

Particle physics research can provide major benefits, but it also requires substantial resources.

Large facilities may require:

• large financial investment
• substantial electricity
• international collaboration
• specialized construction
• long periods of research and development

A balanced evaluation should compare the costs with the potential benefits.

---

Potential Benefits

Benefits include:

• medical technologies
• new materials
• advanced detectors
• computing innovations
• industrial applications
• highly trained scientists and engineers
• international scientific cooperation
• fundamental knowledge

---

Potential Costs and Challenges

Challenges include:

• high construction costs
• high operating costs
• energy consumption
• complex infrastructure
• long project timelines
• opportunity costs

Money spent on large scientific facilities cannot simultaneously be spent on every other societal need.

---

Does Fundamental Research Need an Immediate Application?

Not necessarily.

Many scientific discoveries had no obvious practical use when first made.

For example, understanding:

• electrons
• quantum mechanics
• nuclear physics
• antimatter

eventually contributed to technologies that were impossible to predict when the research began.

This makes it difficult to judge fundamental science only by immediate economic return.

---

Example 1: PET Physics

Why are two photons important in PET?

During electron-positron annihilation:

e⁻ + e⁺ → γ + γ

The two photons travel in nearly opposite directions.

If detectors on opposite sides record photons at nearly the same time, the scanner can determine a line along which the annihilation occurred.

Many such measurements allow an image to be reconstructed.

---

Example 2: Industrial Thickness Measurement

Suppose a radiation detector receives fewer beta particles than normal.

One possible interpretation is:

the material has become thicker

because more radiation is being absorbed.

A control system could then adjust the manufacturing process.

---

Example 3: Proton Therapy

Why can protons be useful for treating a tumour?

Because their energy deposition can be arranged to peak near the end of their path.

Therefore, doctors can concentrate radiation dose near the tumour while reducing some unnecessary dose beyond it.

---

Example 4: Security Detector

A cargo detector measures an unusual neutron signal.

Why might this require investigation?

Because some nuclear materials can produce characteristic neutron radiation.

However, detecting radiation does not automatically identify a dangerous material.

Scientists must determine:

• radiation type
• energy
• intensity
• location
• possible harmless sources

---

Example 5: Materials Science

A beam of ions is directed toward a sample.

Particles scatter from the atoms in the material.

By measuring the scattered particles, scientists can infer the sample's composition.

This demonstrates how particles can act as microscopic probes.

---

Example 6: Evaluating an Application

Consider proton therapy.

Benefits

• highly controllable dose distribution
• reduced dose to some healthy tissues
• valuable for certain tumour locations

Limitations

• very expensive facility
• complex accelerator equipment
• not necessary for every cancer
• requires specialist expertise

A fair evaluation should include both benefits and limitations.

---

From Fundamental Physics to Everyday Technology

A useful sequence is:

particle physics

↓

accelerators and detectors

↓

new technologies

↓

medical, industrial and scientific applications

↓

societal benefits

Fundamental physics therefore creates both knowledge and tools.

---

A Comparison of Applications

---

Particle Physics Is Highly Interdisciplinary

Modern particle physics involves:

• physicists
• engineers
• computer scientists
• chemists
• medical researchers
• materials scientists
• mathematicians

A large accelerator facility is therefore not simply a physics experiment.

It can also serve as a centre for:

• technology development
• engineering
• computing
• education
• international collaboration

---

Did You Know?

PET imaging relies on antimatter, proton therapy relies on particle accelerators, and many industrial measuring systems rely on particle detectors.

Muon tomography uses particles produced naturally in Earth's atmosphere.

Silicon detectors similar in principle to technologies used in electronics can reconstruct the paths of subatomic particles.

These applications all come from the same underlying ideas:

• particles interact with matter
• particles carry energy
• particles can be detected
• particle behaviour follows predictable physical laws

The ability to produce, control, and measure particles has therefore led to technologies with applications across society.

---

Connecting the Ideas

Particle physics applications can be summarized as:

fundamental particles

↓

understanding interactions

↓

control of particle beams

↓

development of detectors

↓

accurate measurement of energy and position

↓

medical imaging and treatment

industrial measurement

security

materials science

scientific research

---

Key Terms

PET – Positron Emission Tomography, a medical imaging technique based on positron annihilation.

Positron – The antiparticle of the electron.

Annihilation – A process in which a particle and antiparticle transform into other particles.

Proton therapy – Cancer treatment using accelerated proton beams.

Bragg peak – The strong increase in energy deposition of a charged particle near the end of its range.

Particle detector – A device used to identify or measure particles or radiation.

Scintillator – A material that emits light when radiation deposits energy in it.

Non-destructive testing – Examination of an object without significantly damaging it.

Ion beam analysis – Use of accelerated ions to study material composition and structure.

Muon tomography – Imaging using naturally occurring cosmic-ray muons.

Synchrotron radiation – Electromagnetic radiation emitted by accelerated charged particles moving along curved paths.

Technology transfer – Adaptation of technology developed for one purpose to other applications.

---

Key Takeaways

• Particle physics has important applications in medicine, industry, security, materials science, and research.
• PET scanners use positron-electron annihilation and detect pairs of approximately 511 keV photons.
• PET is a direct practical application of antimatter physics.
• Particle accelerators can be used to produce medical isotopes and treat cancer.
• Proton therapy uses the controlled energy deposition of proton beams and the Bragg peak.
• Particle detectors can measure thickness, density, radiation, and material composition.
• Radiation techniques allow non-destructive testing of industrial objects.
• Security systems use particle and radiation detectors to identify unusual materials.
• Cosmic-ray muons can be used to image large or dense structures through muon tomography.
• Ion beams can analyze and modify materials at microscopic scales.
• Accelerator technology contributes to semiconductor manufacturing and advanced materials research.
• Synchrotron radiation allows scientists to examine materials and biological structures in great detail.
• Silicon trackers and scintillation detectors are important technologies in both fundamental research and practical applications.
• Particle detectors support research in nuclear physics, cosmology, medicine, astronomy, and many other fields.
• Technologies developed for fundamental research can generate unexpected practical applications.
• The societal value of particle physics includes both direct technological benefits and fundamental scientific knowledge.
• Evaluating particle physics fairly requires considering both its substantial costs and its long-term scientific, medical, technological, and educational benefits.
